Mac Studio (2025)
Technical Specifications
Available in Silver
14-Core CPU
32-Core GPU
36GB Unified Memory
512GB SSD Storage
28-Core CPU
60-Core GPU
96GB Unified Memory
1TB SSD Storage
Chip
Apple M4 Max chip
14-core CPU with 10 performance cores and 4 efficiency cores
32-core GPU
Hardware-accelerated ray tracing
16-core Neural Engine
410GB/s memory bandwidth
Media Engine
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Video decode engine
Two video encode engines
Two ProRes encode and decode engines
AV1 decode
Configurable to:
M4 Max with 16‑core CPU, 40‑core GPU, and 16‑core Neural Engine (546GB/s memory bandwidth)
Apple M3 Ultra chip
28-core CPU with 20 performance cores and 8 efficiency cores
60-core GPU
Hardware-accelerated ray tracing
32-core Neural Engine
819GB/s memory bandwidth
Media Engine
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Two video decode engines
Four video encode engines
Four ProRes encode and decode engines
AV1 decode
Configurable to:
M3 Ultra with 32‑core CPU, 80‑core GPU, and 32‑core Neural Engine (819GB/s memory bandwidth)
Apple Intelligence
Apple Intelligence is the personal intelligence system that helps you write, express yourself, and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.
Memory
36GB
36GB unified memory
Configurable to:
48GB, 64GB, or 128GB (M4 Max with 16-core CPU and 40‑core GPU)
96GB
96GB unified memory
Configurable to:
256GB or 512GB (M3 Ultra with 32-core CPU and 80‑core GPU)
Storage
512GB
512GB SSD
Configurable to:
1TB, 2TB, 4TB, or 8TB
1TB
1TB SSD
Configurable to:
2TB, 4TB, 8TB, or 16TB
Display Support
M4 Max
Simultaneous support for up to five displays:
Up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 144Hz over HDMI
Up to two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI
M3 Ultra
Simultaneous support for up to eight displays:
Eight displays with up to 6K resolution at 60Hz or 4K resolution at up to 144Hz
Four displays with up to 8K resolution at 60Hz or 4K resolution at up to 240Hz
Thunderbolt 5 digital video output
Support for native DisplayPort 2.1 output over USB‑C
HDMI display video output
Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
Support for variable refresh rate (VRR), HDR, and multichannel audio
Audio
Built-in speaker
3.5 mm headphone jack with advanced support for high-impedance headphones
HDMI port supports multichannel audio output

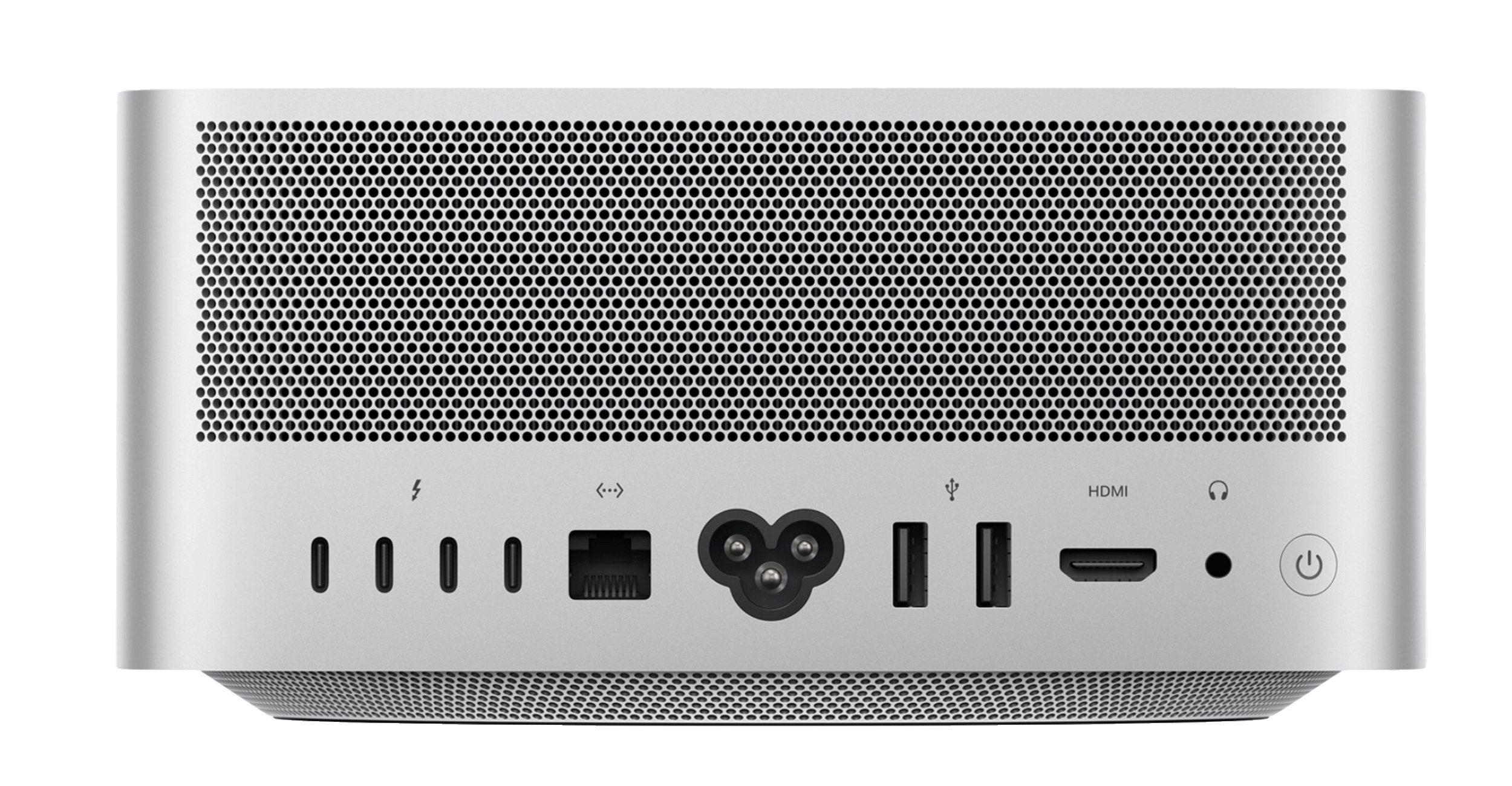

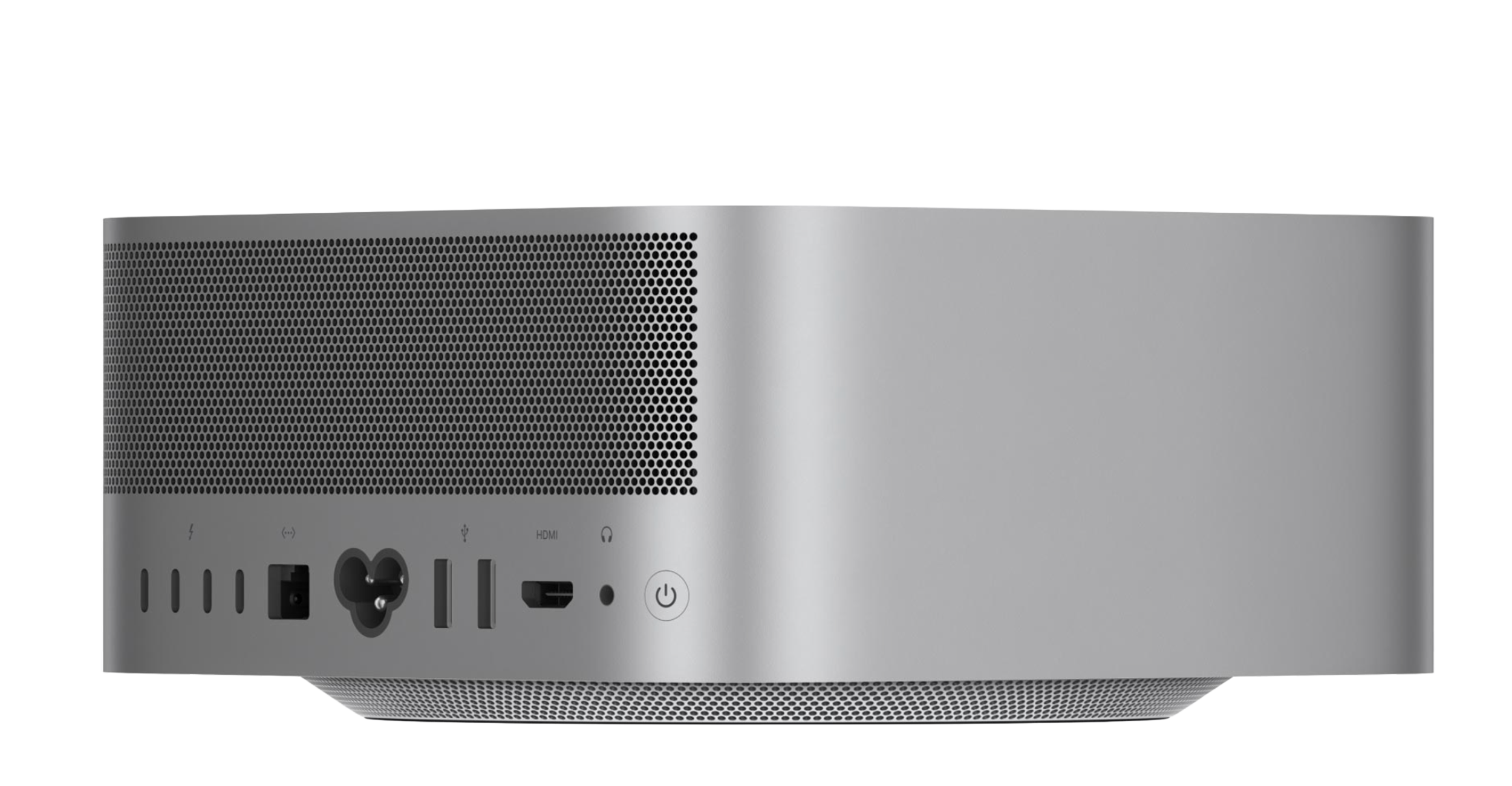

Connections and Expansion
Four Thunderbolt 5 (USB‑C) ports with support for:
Thunderbolt 5 (up to 120Gb/s)
USB 4 (up to 120Gb/s)
USB 3 (up to 10Gb/s)
DisplayPort 2.1
Two USB 3 (USB‑A) ports (up to 5Gb/s)
HDMI 2.1 port
10Gb Ethernet
3.5 mm headphone jack

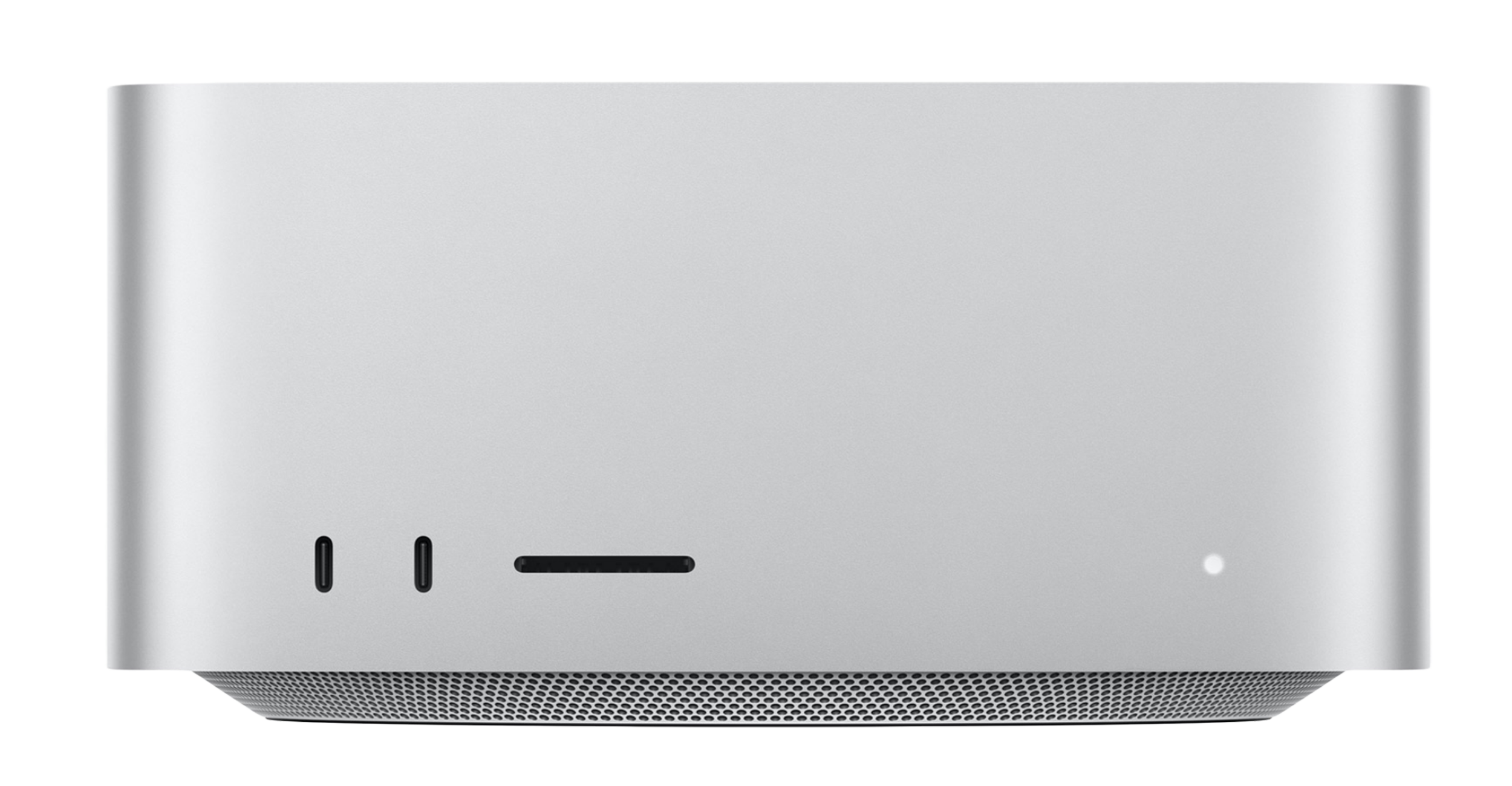

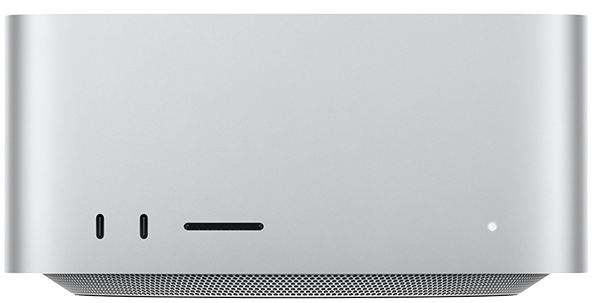

On front (M4 Max):
Two USB‑C ports (up to 10Gb/s)
SDXC card slot (UHS-II)
On front (M3 Ultra):
Two Thunderbolt 5 ports (up to 120Gb/s)
SDXC card slot (UHS-II)
Communications
Wi-Fi
Wi-Fi 6E (802.11ax)
Bluetooth
Bluetooth 5.3
Ethernet
10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)
Size and Weight
Height: 3.7 inches (9.5 cm)
Width: 7.7 inches (19.7 cm)
Depth: 7.7 inches (19.7 cm)
Weight (M4 Max): 6.1 pounds (2.74 kg)
Weight (M3 Ultra): 8.0 pounds (3.64 kg)
Electrical and Operating Requirements
Line voltage: 100–240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 480W
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: –40° to 116° F (–40° to 47° C)
Relative humidity: 5% to 95% noncondensing
Operating altitude: tested up to 16,400 feet (5000 meters)
In the Box
Mac Studio
Power cord
Accessibility
Accessibility features help people with disabilities get the most out of their new MacBook Air. With built‑in support for vision, hearing, mobility, and learning, you can create and do amazing things.
Features include:
Voice Control
VoiceOver
Siri and Dictation
Increase Contrast
Reduce Motion
Live Captions
Switch Control
Zoom
